DESCRIPTION

Overview

Basic Info.

Model NO.	44080E
Condition	New, New
Update Method	Oil Change, Other
After-Sales Service	One Year
Transport Package	Carton
Specification	470*470*880MM
Trademark	FABIT
Origin	China
HS Code	8479899990
Production Capacity	1000sets/Month

Product Description

Product Description

15 Gallon Mobile Gravity oil Collector with Central Recovery Bowl -70 Litres

Pneumatic Waste Oil Drain Collector Feature:1.Height adjustable telescopic steel drain pan fitted with grid filter2.Air discharge drain with hose supplied3.Reservoir oil level indicator tube4. Power from air compressor, safe and easy operation

Technical Data

Item No.	44080E
Tank Capacity	15 Gallons / 70 Litres
Tank Size	φ15inch X 22inch
Material	ST14 cold rolled steel plate
Lifting height	0.58m - 1.55m
Scope of oil collecting	φ23''/φ0.58m
Prechamber capacity	10L
Prechamber size	Ø220 x 285mm
Air working pressure	6-8 Bar (87 -116 psi)
Safety valve	21.75 psi
Length of suction hose	63inch/1.6m
Length of discharging hose	63inch/1.6m
Wheels' size	6-Inch fixed bearing wheel*2, 3-Inch rotatable caster*2
Carton size	470 x 470 x 880 mm

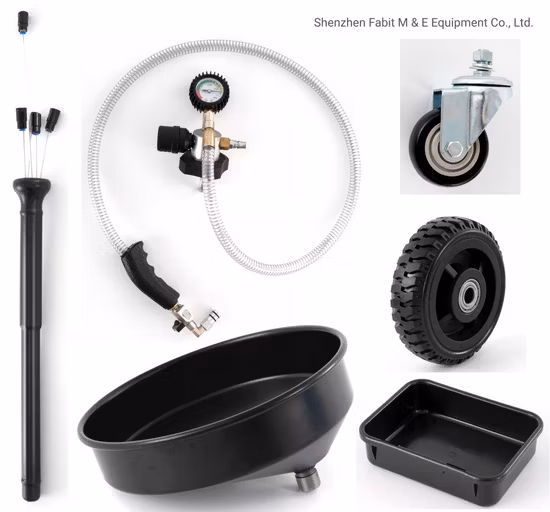

Detailed Photos
